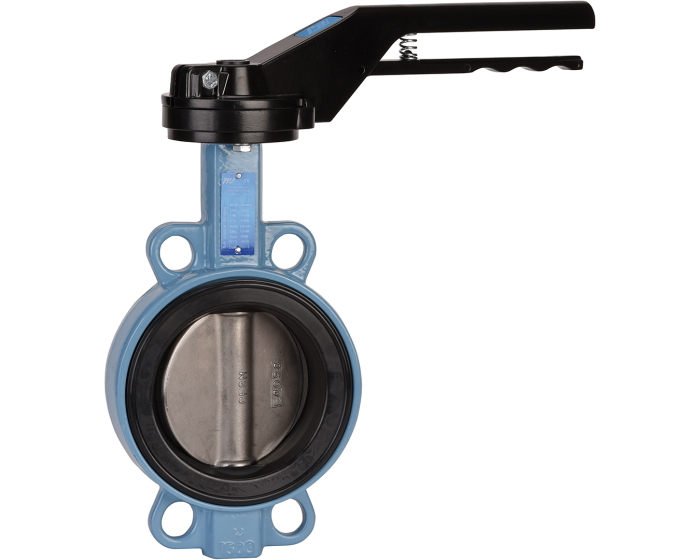

Ducitle iron butterfly valve 1151FD wafer CF8M disc/NBR seat DN32-40
€90.81
(excl. btw)
The ductile iron butterfly valve 1151FD wafer with CF8M disc and NBR seat is designed for precise flow control in food applications. Its durable construction ensures reliable performance and compliance with hygiene standards.
Specification
Value
DN inches NPS
1''1/2
Option certificate 3.1
Yes
DN metric
40/49
Construction standard
ISO 10631 - EN 593
Type of paint
Rilsan
Paint coating thickness (µm)
250.00
EN face-to-face standard
EN 558 Series 20
DIN face-to-face standard
DIN 3202 Part.3 Series K1
ISO face-to-face standard
ISO 5752 Series 20
Brand
TTV
Tightness test standard
EN 12266-1 Rate A
Type of seat
Removable
Notch plate
Yes
Opening device
Handle
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 304
Lockable
Yes
Square, star (mm)
Square 8 mm
ATEX compatible
Yes
Torque (Nm)
9
DN
DN40 - 1''1/2
Face to Face (mm)
33.0
Kv (m³/h)
36.0
Seat
NBR
Body material
Ductile iron
Disc material
Stainless steel ASTM A351 CF8M
ISO pad 5211
F05/F07
PS (bar)
16
Connections
Between flanges PN10/16 #150
TS max (°C)
90
TS min (°C)
-10
Butterfly valve design
Concentric
Wafer/lug
Wafer
ATEX zone
1 & 21. 2 & 22
Through shaft
Yes
Warranty period
10 years
CE
Yes
Handle material
Aluminium
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
9783
Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2
1151040FD
S1009704
€90.81
(excl. btw)
add to cart
9784
Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2''
1151050FD
S1009705
€90.81
(excl. btw)
add to cart
9785
Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2
1151065FD
S1009706
€101.59
(excl. btw)
add to cart
9786
Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3''
1151080FD
S1009707
€162.09
(excl. btw)
add to cart
9787
Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4''
1151100FD
S1009708
€186.39
(excl. btw)
add to cart
9788
Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5''
1151125FD
S1009709
€181.90
(excl. btw)
add to cart
9789
Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6''
1151150FD
S1009710
€271.87
(excl. btw)
add to cart
9790
Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8''
1151200FD
S1009711
€345.64
(excl. btw)
add to cart
9791
Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10''
1151250FD
S1009712
€556.07
(excl. btw)
add to cart
9792
Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12''
1151300FD
S1009713
€818.93
(excl. btw)
add to cart
